Format Architectural

single skin cladding

single skin mitred trapezoidal profiled curved corners

Mitred Profiled Curved Corners

Format Mitred Curves are produced from customers free issue curved profiled sheets. These sheets are accurately developed to achieve a close fitting joint up and over the curved portion. This elliptical joint lends itself to bracket and rivet construction, which is finally fully sealed on both inner and outer faces.

Products include:

  • single skin mitred trapezoidal profiled curved corners

    Single Skin Mitred Trapezoidal Profiled Curved Corners

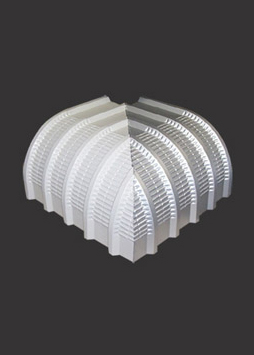

    Single Skin Mitred Trapezoidal Profiled Curved Corner 38mm deep curved sheets converted to a 90º parapet corner. Unusual for this detail individual building elevations are different colours, hence grey / silver corner unit.

50mm half round profile closed end

Profiled Closed Ends

Format Profiled Closed Ends are produced from customers free issue profiled sheets using matching flat sheets cut to shape to close off the profile end. Aluminium and steel precoated materials are suitable in most profiles and are manufactured to the highest quality standards. Jointing methods have been developed for both substrates with variations depending on the precoat system chosen. These products are generally used at window and doorjamb locations.

Products include:

  • 50mm half round profile closed end

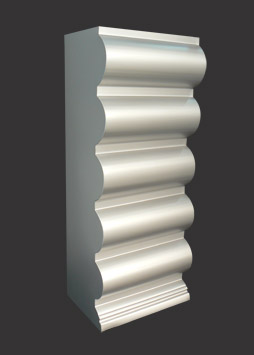

    50mm Half Round Profile Closed End

    50mm half round profile closed end produced from PVF2 coated steel rollformed sheets with 300mm long flat return. Joined by solder.

  • trapezoidal closed end

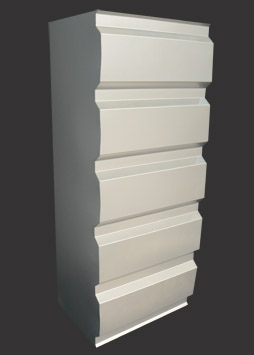

    Trapezoidal Cladding Profile Closed End

    Trapezoidal profile with secondary stiffening. Produced from PVF2 coated steel rollformed sheets with 300mm long flat return. Joined by Solder.

  • 50 30 profile closed end

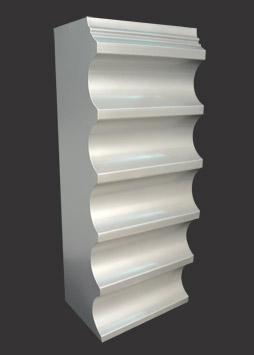

    50-30 Profile Closed End

    50-30 half round profile closed end produced from PVF2 coated steel rollformed sheets with 300mm long flat return. Joined by solder.

  • 125mm sinusoidal profile closed end

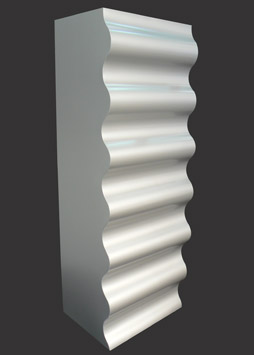

    125mm Sinusoidal Profile Closed End

    125mm Sinusoidal profile also known as 5". Produced from PVF2 coated steel rollformed sheets with 300mm long flat return. Joined by Solder.

  • 70mm louvre profile closed end

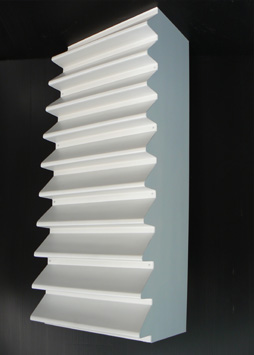

    70mm Louvre Profile Closed End

    70mm Louvre profile produced from PVF2 coated aluminium rollformed sheets with 300mm long flat return. Joined by bonding.

  • 75mm sinusoidal profile closed end

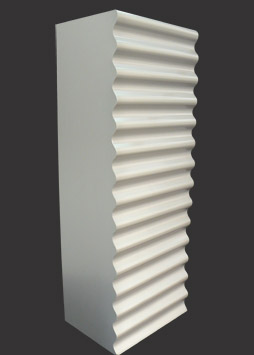

    75mm Sinusoidal Profile Closed End

    75mm Sinusoidal also know as 3". Produced from PVF2 coated aluminium rollformed sheet with 300mm long flat return. Joined by bonding.

75m sinusoidal external

Mitred Profiled Corners

Format Profiled corners are produced from customers free issue profiled sheets to suit a variety of angles. Aluminium and Steel precoated materials are suitable in most profiles and are manufactured to the highest quality standards. Jointing methods have been developed for both substrates with variations depending on the precoat system chosen.

Products include:

  • 75m sinusoidal external

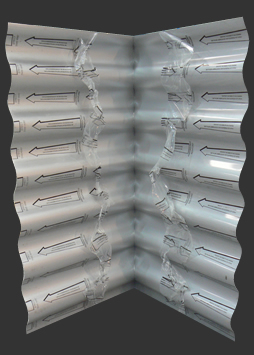

    75mm Sinusoidal External

    75mm Sinusoidal also know as 3" profile 90º external corner. Produced from PVF2 coated aluminium rollformed sheet with 500mm leg lengths. Protective film partially removed. Joined by bonding.

  • 125mm sinusoidal

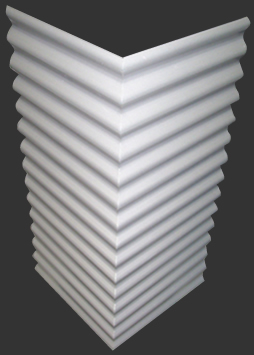

    125mm Sinusoidal

    125mm Sinusoidal profile also known as 5" profile 90º internal corner. Produced from PVF2 coated steel rollformed sheets with 500mm long leg lengths. Joined by solder.

  • trapezoidal external

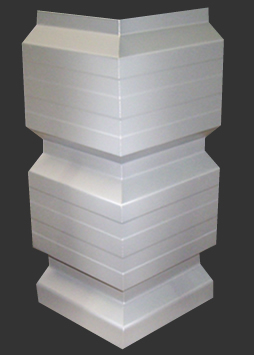

    Trapezoidal External

    Trapezoidal profile with secondary stiffening profiles 90º external corner. Produced from PVF2 coated steel rollformed sheets with 500mm leg lengths. Joined by Solder.

  • 70mm louvre profile

    70mm Louvre Profile External

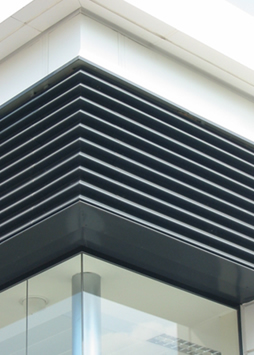

    70mm Louvre profile 90º external corners produced from PVF2 coated aluminium rollformed sheets with 500mm leg lengths. Joined by bonding. Product installed at Sytner BMW Solihull.

  • single skin mitred profiled corner

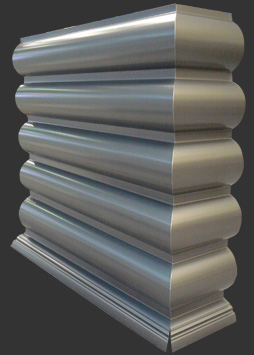

    Single Skin Mitred profiled corner

    50mm half round profile 90º odd leg external corners produced from PVF2, dark silver metallic coated.

  • single skin louvre profile corner

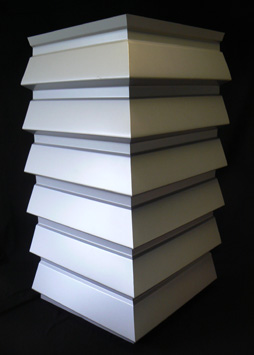

    Single Skin Louvre Profile Corner

    70mm Louvre profile 90º external corners produced from PVF2 coated aluminium rollformed sheets with 500mm leg lengths. Joined by bonding.
